  4. High Speed Fiber Laser Cutting Machine (Large Format, Full Protection), CMA2040C-GH-A

High Speed Fiber Laser Cutting Machine (Large Format, Full Protection)


The CMA2040C-GH-A is upgraded from CMA2040C fiber laser cutting machine. It performs large format, fully automatic loading and unloading procedures while providing full protection. The high rigidity, heavy duty machine is designed to cut stably at high speed and with high power. It also provides a high level of positioning accuracy. Due to the advantages of large format, full protection, high speed and efficiency, the CMA2040C-GH-A fiber laser cutter has become the first choice for industries, including kitchenware, luminaires, car parts, agricultural machinery and hotel supplies, etc.

Functional Features
1. The high rigidity, heavy duty industrial laser machine minimizes the risk of oscillation generated from high-speed cutting.
2. The gantry type double drive system operates with wear-resistant German rack and pinion. It removes the need for screw drive and has overcome the oscillation problem resulting from high speed, long-haul operation. It helps to realize high speed and precision transmission and thereby improve production efficiency.
3. The high-performance case aluminum cross member has been optimized and undergone finite element analysis to achieve the ultimate in dynamic performance. It features the lowest weight, best structural rigidity, highest running speed and greatly improved dynamic response, thus making it especially suited for high speed and precision laser cutting as well as high-acceleration arc cutting.
4. The fully-enclosed laser cut control system is provided with auto focus, high-speed punching and automatic edge tracking function.

Technical Parameters
Model CMA2040C-GH-A Fiber Laser Cutting Machine
Name Fiber Laser Cutting Machine
Cutting Range (L×W) 2000mm×4000mm
Laser Type Fiber laser
Rated Laser Power (optional) 700W~3000W
Drive System Dual-drive gantry structure
Lubrication System Fully automatic
Maximum Speed 100m/min
Maximum Acceleration 1.0G
Positioning Accuracy ±0.03mm/1000mm
Repeatable Positioning Accuracy ±0.02mm/1000mm
Supported Graphic Format CAD, DXF, etc.
Work Environment 0-40℃ Humidity≤ 80%, non condensing
Total Power Approx. 25KW
Power Supply 3-phase 380V/50Hz/60Hz
Approx. Overall Dimension (L×W×H) 10300mm×3350mm×1875mm
Approx. Total Weight 8500Kg
Equipment at a Glance

Suitable Materials
The metal cutting system is mainly used for fast cutting of carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, Al-Zn coated sheet, brass, copper and other metallic materials.

Kitchenware, lamps, sheet metal work, equipment cabinets, auto parts, refrigerators, air conditioners, elevators, hotel supplies, etc.

Samples at a Glance
Laser-cut stainless steel bookcase Laser-cut equipment cabinet Laser-cut stainless steel stove

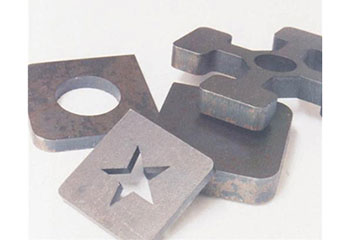

Laser-cut refrigerator Laser-cut kitchenware Laser-cut thick steel plate
Fiber Laser
1. Wavelength: 1070~1090nm
2. Beam quality: TEM00 (M2<1.4)
3. Lifespan of the Pump Diode: over 100,000 hours
4. Maintenance-free operation
5. Single mode fiber transmission
6. Optimal beam mode and cutting efficiency
7. Specialized in metal cutting
Auto Focus System with High Dynamic Range
1. Control the capacitive, servo-driven laser cutting head by closing the position and speed loops.
2. Fast dynamic response and high precision
3. Support leapfrog elevation and rapid follow-up.
High Efficiency and Precision Motion Module
The wear-resistant rack and pinion drive system can overcome the oscillation problem caused by high speed, long-distance operation. It can realize high speed and precision transmission.
Professional Low-Thickness Steel Plate Cutting Control Software
1.Adopt self-adaptive smoothing algorithm to optimize the cutting route automatically
2.Automated edge tracking function
3.Adopt Bezier curve algorithm to realize high-efficiency curving and also prevent damage generated from the thermal processing activity
Finite Element Analysis of the Cross Member Structure
1. Finite element analysis and optimization is done on the cross member to achieve the ultimate in dynamic properties: the lowest weight, best structural rigidity, highest running speed and greatly improved dynamic response.
2. Ideally suited for high speed and precision laser cutting
High-Performance Servo Motor
The Japanese Yaskawa high-inertia servo system can offer the best amplifier response, which results in minimal setting time, effective speed control and maximum mechanical stability.
Y-axis Synchronous
Double Drive Solution
1. Twin-motor, twin-gear synchronous drive system with a high-strength aluminum alloy cross member
2. Maximum acceleration: 1.0G
3. Provide ultra high processing efficiency and greatly reduced gas consumption
Cooling Unit
1. Intelligent water cooling system available with dual temperature range
2. Safety alarm functions include over temperature alarm, flow protection, water level protection, etc.
3. This equipment is guaranteed to work normally even in a hot and humid environment.

World-class Facilities
In order to ensure a world class level, we never rest in improving the product quality and manufacturing accuracy. For the past few years, we have invested heavily in several dozen cutting-edge facilities, including the following:
1. Large-sized precision machining center purchased from HUNCO, OKUMA, AMADA, MAZAK and AWEA
2. German WENZEL three-dimensional coordinate measuring machine
3. American HOFMANN dynamic balancing machine
4. British RENISHAW laser machine and ballbar system
5. Laser interferometer, collimator, microscope, ultrasonic detector, infrared analyzer and other advanced test facilities

A wide collection of top-notch facilities and talents enables YUEMING not only to improve production efficiency continuously but also to keep standing out from competition in the marketplace.

World-leading Manufacturing Capacity
Test Facilities
American OPTODYNE Laser Measuring Instrument Bi-direction High Precision Autocollimator
The three-dimensional coordinate measuring instrument enables the dimensional measurement of complicated workpieces. It can offer an ultra high level of precision and conform to the design related standard.
