The CMA1530C-GH-C fiber laser cutting machine is specially designed for users who require medium power, fast cutting and high level of automation. It can be produced in optional power ranging from 700W to 2000W while providing a simple exterior and a robust structure. This metal laser cutting machine works with an exchange type work platform to conduct fast cutting and continuous loading/unloading procedures. It has earned the trust and confidence of users in industries such as advertising, lighting and metalworking.
Functional Features
1. The use of gantry type rack-and-pinion dual servo drive system and large-inertia high torque motor with maximum acceleration of up to 1.2G ensures this equipment works fast and precisely.
2. The high rigidity, reinforced welded body is subjected to precision milling and secondary annealing for effective stress relief.
3. The fiber laser generator features high optical quality and stable output power, resulting in high-precision cutting.
4. Finite element analysis is done on the cross member, providing the advantages of light weight, high rigidity and superior dynamic properties.
5. Professional laser cutting software has the function of graphical layout and corner smoothing, enabling this product to perform high-speed punching and marking.
6. Extremely low operating cost: The laser with a power consumption of 3-4kWh can air cut a variety of metal sheets.
7. The auto focus system can control the capacitive, servo-driven laser cutting head by closing the position and speed loops. It features a fast dynamic response and high precision, and it also supports leapfrog elevation and rapid follow-up.
8. Professional Steel Plate Cutting Control Software
1) Adopt self-adaptive smoothing algorithm to optimize the cutting route automatically
2) Automated edge tracking function
3) Adopt Bezier curve algorithm to realize high-efficiency curving while simultaneously preventing unexpected damage generated from the thermal processing activity
Model | CMA1530C-GH-C Fiber Laser Cutting Machine with Exchange Type Work Platform |
Cutting Range | 1500mm×3000mm |
Laser Type | Fiber laser |
Rated Laser Power (optional) | 700W~2000W |
Drive System | Dual-drive gantry structure |
Lubrication System | Fully automatic |
Maximum Speed | 120m/min |
Maximum Acceleration | 1.2G |
Positioning Accuracy | ±0.03mm/1000mm |
Repeatable Positioning Accuracy | ±0.02mm/1000mm |
Supported Graphic Format | CAD, DXF, etc. |
Work Environment | 0-40℃ Humidity≤ 80%, non condensing |
Total Power | Approx. 20KW |
Power Supply | 3-phase 380V/50Hz/60Hz |
Overall Dimension (L×W×H) | 8160mm×2435mm×1885mm |
Total Weight | 5500Kg |
Suitable Materials
Fiber laser cutting systems are mainly used for fast cutting of carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, Al-Zn coated sheet, brass, copper and other metallic materials.
Applications
Kitchenware, lamps, sheet metal work, equipment cabinets, auto parts, refrigerators, air conditioners, elevators, hotel supplies, etc.

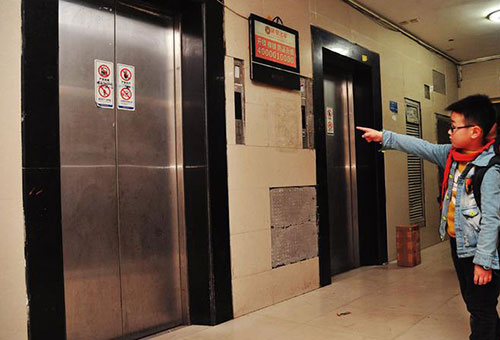

Laser-cut refrigerator | Laser-cut stainless steel cooker | Laser-cut elevator | Laser-cut hotel supplies |
Laser-cut air conditioner | Laser-cut light panel | Laser-cut precision car parts | Laser-cut equipment cabinet |
Fiber Laser 1. Wavelength: 1070~1090nm 2. Beam quality: TEM00 (M2<1.4) 3. Lifespan of the Pump Diode: over 100,000 hours 4. Maintenance-free operation 5. Single mode fiber transmission 6. Optimal beam mode and cutting efficiency 7. Specialized in metal cutting |
|
Auto Focus System with High Dynamic Range 1. Control the capacitive, servo-driven laser cutting head by closing the position and speed loops. 2. Fast dynamic response and high precision 3. Support leapfrog elevation and rapid follow-up. |
|
High Efficiency and Precision Motion Module The wear-resistant rack and pinion drive system can overcome the oscillation problem caused by high speed, long-distance operation. It can realize high speed and precision transmission. |
|
Professional Low-Thickness Steel Plate Cutting Control Software 1.Adopt self-adaptive smoothing algorithm to optimize the cutting route automatically 2.Automated edge tracking function 3.Adopt Bezier curve algorithm to realize high-efficiency curving and also prevent damage generated from the thermal processing activity |
|
Finite Element Analysis of the Cross Member Structure 1. Finite element analysis and optimization is done on the cross member to achieve the ultimate in dynamic properties: the lowest weight, best structural rigidity, highest running speed and greatly improved dynamic response. 2. Ideally suited for high speed and precision laser cutting |
|
High-Performance Servo Motor The Japanese Yaskawa high-inertia servo system can offer the best amplifier response, which results in minimal setting time, effective speed control and maximum mechanical stability. |
|
Y-axis Synchronous Double Drive Solution 1. Twin-motor, twin-gear synchronous drive system with a high-strength aluminum alloy cross member 2. Maximum acceleration: 1.0G 3. Provide ultra high processing efficiency and greatly reduced gas consumption |
|
Cooling Unit 1. Intelligent water cooling system available with dual temperature range 2. Safety alarm functions include over temperature alarm, flow protection, water level protection, etc. 3. This equipment is guaranteed to work normally even in a hot and humid environment. |
World-class Facilities
In order to ensure a world class level, we never rest in improving the product quality and manufacturing accuracy. For the past few years, we have invested heavily in several dozen cutting-edge facilities, including the following:
1. Large-sized precision machining center purchased from HUNCO, OKUMA, AMADA, MAZAK and AWEA
2. German WENZEL three-dimensional coordinate measuring machine
3. American HOFMANN dynamic balancing machine
4. British RENISHAW laser machine and ballbar system
5. Laser interferometer, collimator, microscope, ultrasonic detector, infrared analyzer and other advanced test facilities
A wide collection of top-notch facilities and talents enables YUEMING not only to improve production efficiency continuously but also to keep standing out from competition in the marketplace.
