Functional Features of the Fiber Laser Cutter
1. The frame of the high speed cutting machine is welded from steel components ensuring high rigidity and stability. It can effectively eliminate the oscillation phenomenon resulting from high-speed cutting.
2. The gantry type dual drive system combined with German rack and pinion helps customers improve production efficiency significantly.
3. The cross member is made of cast aluminum alloy and features refined workmanship.
4. The fully-enclosed laser cut control system has the function of high-speed punching and automatic edge tracking for ease of operation.
5. The cutter machine adopts high-performance servo motor and Japanese Yaskawa high-inertia servo system that offers the best amplifier response, resulting in minimal setting time, effective speed control and maximum mechanical stability.
6. The auto focus system can control the capacitive, servo-driven laser cutting head by closing the position and speed loops. It features a fast dynamic response and high precision. It also supports leapfrog elevation and allows for rapid follow-up.
7. The control system adopts self-adaptive smoothing algorithm to optimize the cutting route automatically. It also uses Bezier curve algorithm to realize high-efficiency curving and prevent unexpected damage generated from the thermal processing activity.
Model | CMA1530C-G-B |
Cutting Range (L×W) | 3000mm×1500mm |
Laser Type | Fiber laser |
Laser Output Power | 700W~2000W |
Drive System | Gantry type, rack and pinion, dual drive |
Lubrication System | Fully automatic |
Max. No-Load Speed | 120m/min |
Maximum Acceleration | 1.2G |
Positioning Accuracy | ±0.03mm/1000mm |
Repeatable Positioning Accuracy | ±0.02mm/1000mm |
Supported Graphic Format | PLT, DXF, AI, etc. |
Work Environment | 0-45℃ Humidity≤ 80%, non condensing |
Machine Power | Approx. 15KW |
Power Supply | 3-phase 380V/50Hz/60Hz |
Total Weight | 4500Kg |
Overall Dimension (including protective cover) | 4500mm×2750mm×1870mm |
Suitable Materials
The metal laser cutter is mainly used for fast cutting of carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, Al-Zn coated sheet, copper and other metallic materials.

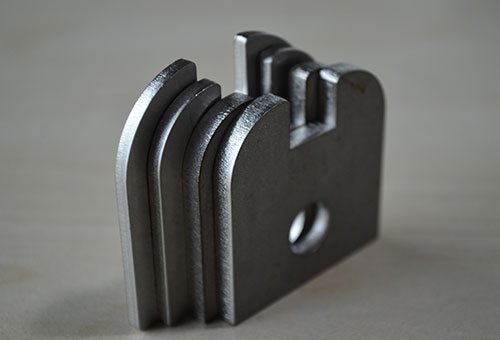

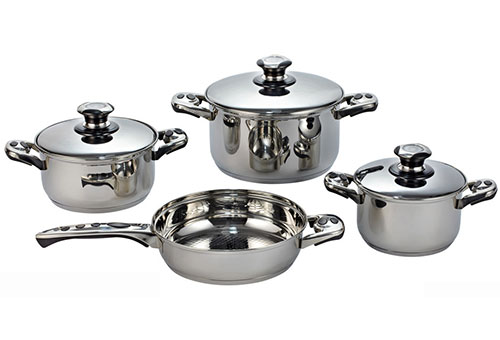

Laser-cut stainless steel plate | Laser-cut stainless steel stove | Laser-cut stainless steel cooker | Laser-cut thick carbon steel plate |
Laser-cut equipment cabinet | Laser-cut stainless steel fridge | Laser-drilled aluminum alloy | Laser-cut copper plate |
Fiber Laser 1. Wavelength: 1070~1090nm 2. Beam quality: TEM00 (M2<1.4) 3. Lifespan of the Pump Diode: over 100,000 hours 4. Maintenance-free operation 5. Single mode fiber transmission 6. Optimal beam mode and cutting efficiency 7. Specialized in metal cutting |
|
Auto Focus System with High Dynamic Range 1. Control the capacitive, servo-driven laser cutting head by closing the position and speed loops. 2. Fast dynamic response and high precision 3. Support leapfrog elevation and rapid follow-up. |
|
High Efficiency and Precision Motion Module The wear-resistant rack and pinion drive system can overcome the oscillation problem caused by high speed, long-distance operation. It can realize high speed and precision transmission. |
|
Professional Low-Thickness Steel Plate Cutting Control Software 1.Adopt self-adaptive smoothing algorithm to optimize the cutting route automatically 2.Automated edge tracking function 3.Adopt Bezier curve algorithm to realize high-efficiency curving and also prevent damage generated from the thermal processing activity |
|
Finite Element Analysis of the Cross Member Structure 1. Finite element analysis and optimization is done on the cross member to achieve the ultimate in dynamic properties: the lowest weight, best structural rigidity, highest running speed and greatly improved dynamic response. 2. Ideally suited for high speed and precision laser cutting |
|
High-Performance Servo Motor The Japanese Yaskawa high-inertia servo system can offer the best amplifier response, which results in minimal setting time, effective speed control and maximum mechanical stability. |
|
Y-axis Synchronous Double Drive Solution 1. Twin-motor, twin-gear synchronous drive system with a high-strength aluminum alloy cross member 2. Maximum acceleration: 1.0G 3. Provide ultra high processing efficiency and greatly reduced gas consumption |
|
Cooling Unit 1. Intelligent water cooling system available with dual temperature range 2. Safety alarm functions include over temperature alarm, flow protection, water level protection, etc. 3. This equipment is guaranteed to work normally even in a hot and humid environment. |
