Functional Features
1.The laser cutting machine adopts gantry type ball-screw dual drive system for large inertia, high torque output and maximum acceleration of up to 0.6G.
2.The reinforced welded body has undergone precision milling and annealing for minimal deformation and effective stress relief during vibration.
3.The cross member has been drawn and precisely processed to ensure light weight, high rigidity and superior dynamic performance.
4.The professional laser cutting software can realize the function of graphic layout, corner smoothing, high-speed punching and marking.
5.Integrated structure design allows for a compact layout and small footprint.
Product Model | CMA1325C-G-E Laser Cutting Machine for Metal and Nonmetal |
Cutting Range | 1300mm×2500mm |
Laser Type | CO2 laser |
Laser Wavelength | 10.64μm |
Laser Power | 260W |
Drive System | Gantry type dual drive |
Maximum Speed | 35m/min |
Maximum Acceleration | 0.6G |
Positioning Accuracy | ±0.08mm/1000mm |
Repeatable Positioning Accuracy | ±0.05mm/1000mm |
Supported Graphic Format | CAD, DXF, etc. |
Work Environment | 0-40℃ Humidity≤ 80%, non condensing |
Total Power | Approx. 7KW |
Power Supply | Single-phase 220V/50Hz/60Hz |
Overall Dimension (L×W×H) | 3800mm×2220mm×1150mm |
Total Weight | 2500Kg |
Suitable Materials
Suitable materials for the metal laser cutter include Acrylic, MDF, carbon steel, stainless steel, etc.
Applications
Typical applications of the nonmetal cutting machine are found in advertising decoration, handcrafted gifts, metal products, etc.

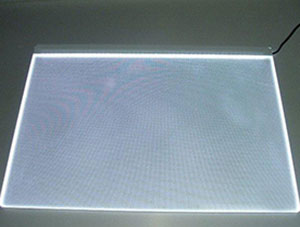

Laser-cut stainless steel sheets | Laser-cut luminous letters | Laser-cut crystal letter | Laser-cut light guide plate |
Laser-cut wooden plate | Laser-cut decorative gift | LED light box production | Laser-cut metal letters for advertising |
Characteristics of the Laser Cutting Machine
Solid Sheet Metal Structure Design The sheet metal components of the product vary in thickness from 3mm to 6mm. Prominent features of this product include high rigidity, superior structural stability and no deformation, etc. |
|
Drawn Aluminum Alloy Cross Member Finite element analysis is done on the cross member to ensure this machine possesses good dynamic accuracy, long-lasting durability and high-precision cutting on metal sheets. |
|
High-Performance Yaskawa Servo Motor The powerful servo motor is highly flexible and shows extinguished mechanical properties. |
|
Electrical Cabinet This cabinet is fully compliant with international safety standard and features rational electrical design. Its components are purchased from world-renowned brands including Siemens, Schneider, etc. |
