Dynamic Laser Marking Machine

DDB-150F

The DDB-150F dynamic laser marking machine is a piece of equipment focusing on large-format marking and cutting, emitting laser beams under the scan of dynamic 3D galvanometer to make it. This dynamic laser machine consists of X and Y axes. The X axis stands for the moving path of laser head and galvanometer and the Y axis for the 1800 mm wide mesh belt.
The dynamic laser marking machine has a front rewinding unit and a hopper to recover material. Both X and Y axes are stepping motor driving. During cutting, the hopper waits beneath the mesh belt and after cutting, the rewinding unit will gather all marked parts.

Technical Parameters of the Dynamic Laser Marking Machine
Laser Power: 150 W
Wave Length: 10.6 μm
General Power: <8.5 kW
Maximum Marking Format: 1800 mm × 1400 mm
Light Spot Quality: M2<1.2mm
The Highest Speed of Marking Line: 0.15 mm
Minimum Line Width: 0.3 mm
Power: 220V±10%, 50 Hz/4A
Main Size: 2500 mm × 2200 mm × 1900 mm
Gross Weigh: 1100 kg

Features
The dynamic laser marking machine gathers functions of automatic material supply, and marking. With advanced three axes and dynamic galvanometer of automatic focusing makes it capable to cut 500 mm x 500 mm format at once. The maximum flat width or coiled material reaches 1800 mm with indefinite length. The dynamic laser marking machine is suitable for soft materials.

  • RF laser head made in US
  • High speed USB controller card
  • High-performance dynamic focus scanning head

Applications
The dynamic laser marking machine is used to carve and cut in factories that produce garments, different kinds of clothes and shoes. It is able to mark on plastics and dark color materials mainly to print logos or decoration.

Industries
The dynamic laser marking machine is generally used in garment, footwear, electronics and rubber products, fashion and accessories industries among others.

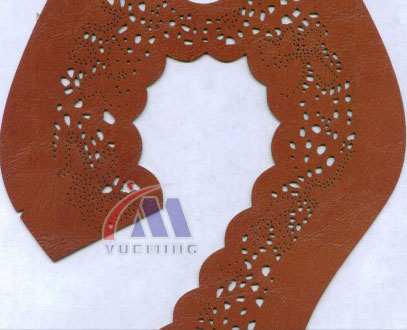

Sample Show
  • Clothing Industry Leather Engraving
  • Shoe Industry, Shoe Carving and Punching
  • Shoe Industry, Leather Marking and Punching
  • Garment Industry, Jean Carving and Marking
  • Garment Industry, Leather Marking and Punching
  • Handbag Industry, Leather Carving
  • Garment Industry, Leather Carving and Punching
  • Garment Industry, Leather Carving and Punching
